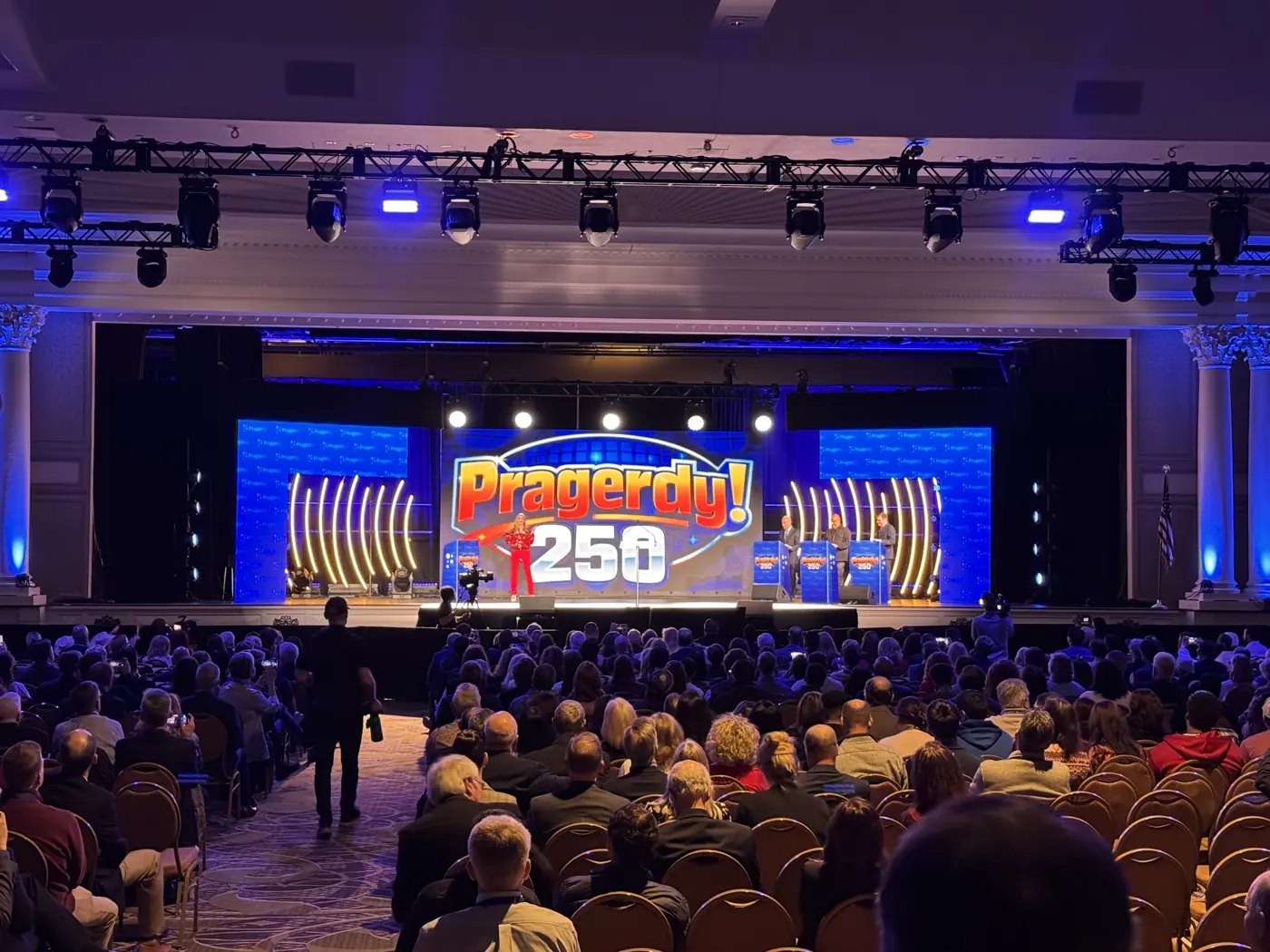

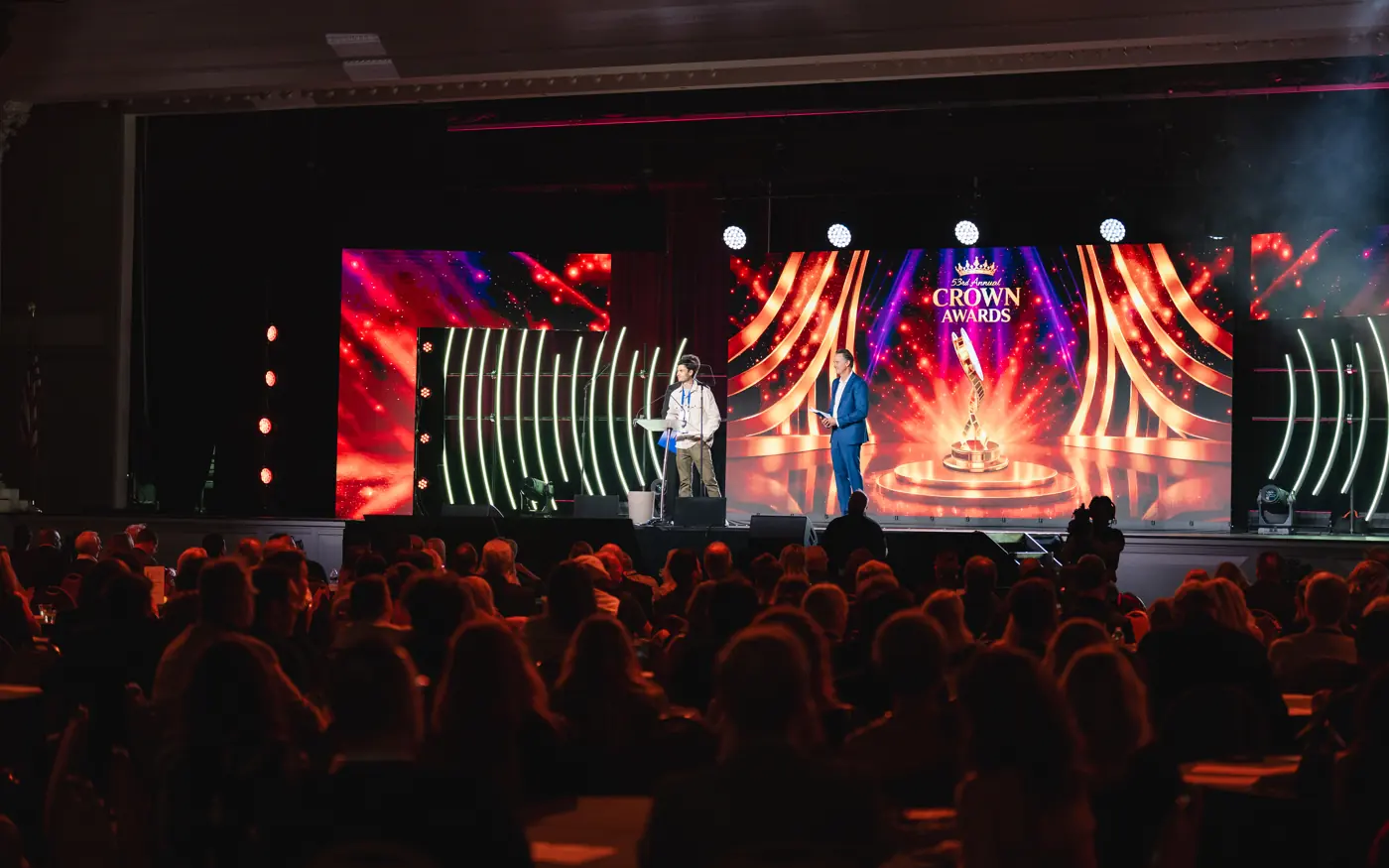

Gaylord Opryland
The venue supplies every rig point, so we design walls that lean on a strong ground package.
Owned 2.6mm LED walls, designed into your general session and run by a full-time production manager.
Our walls ground stack, rig, curve, and turn seamless 90-degree corners. From a flat keynote backdrop to a curved wall with clean corners, one accountable team builds, runs, and strikes the wall as part of your production. Tell us about your room and your content, and you will have a detailed quote within 72 hours in most cases once we have the right information.
Planners tell us the same worries about LED: a quote that grows, visible seams, content that does not fit the screen, and a panel that goes dark during a keynote. Each one lands on you, in front of your client. You deserve a wall that arrives ready and a team that answers every question before show day.
Each year our team plans, funds, and produces the SALT Conference, so we know what it feels like when the screen has to work. Since 2008 we have produced corporate events across Nashville and beyond, and the LED department sits inside our own shop. Pair it with corporate AV production in Nashville or full event production, and one accountable team handles your wall, sound, lighting, and cameras.
We ask what your audience should walk away with, the size of the space, and the video you plan to show.
Larger shows get a 3D rendering before load-in, and you receive a detailed quote within 72 hours in most cases once we have the right information.

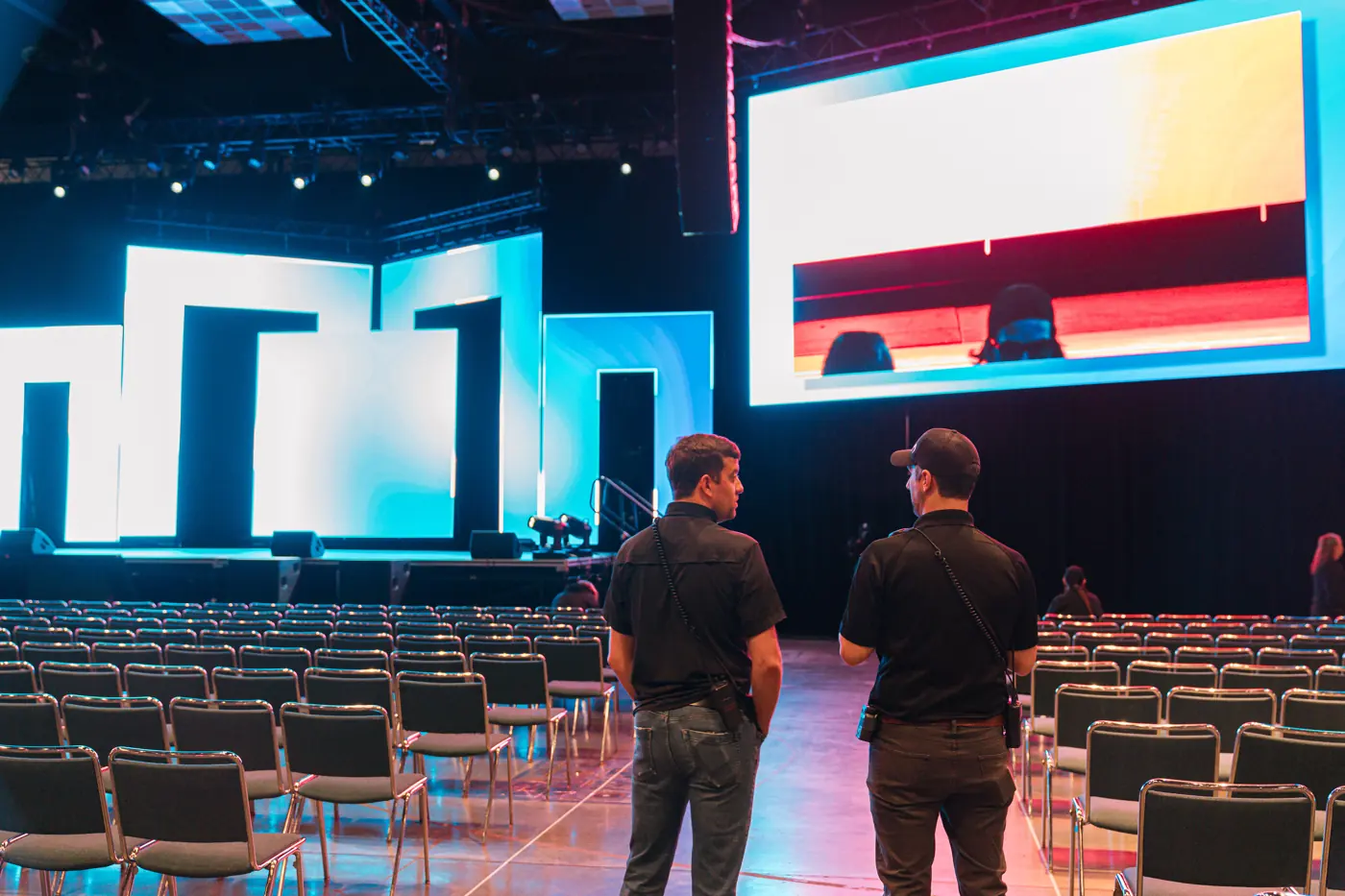

A full-time production manager owns your wall from load-in through load-out, with a trained specialist in every role.
| Configuration | Choose it when | What to know |
|---|---|---|
| Flat wall | A clean backdrop for a keynote or panel | Fastest to build and the simplest content |
| Curved wall | You want the screen to wrap the stage | Creative curve tiles shape the arc |

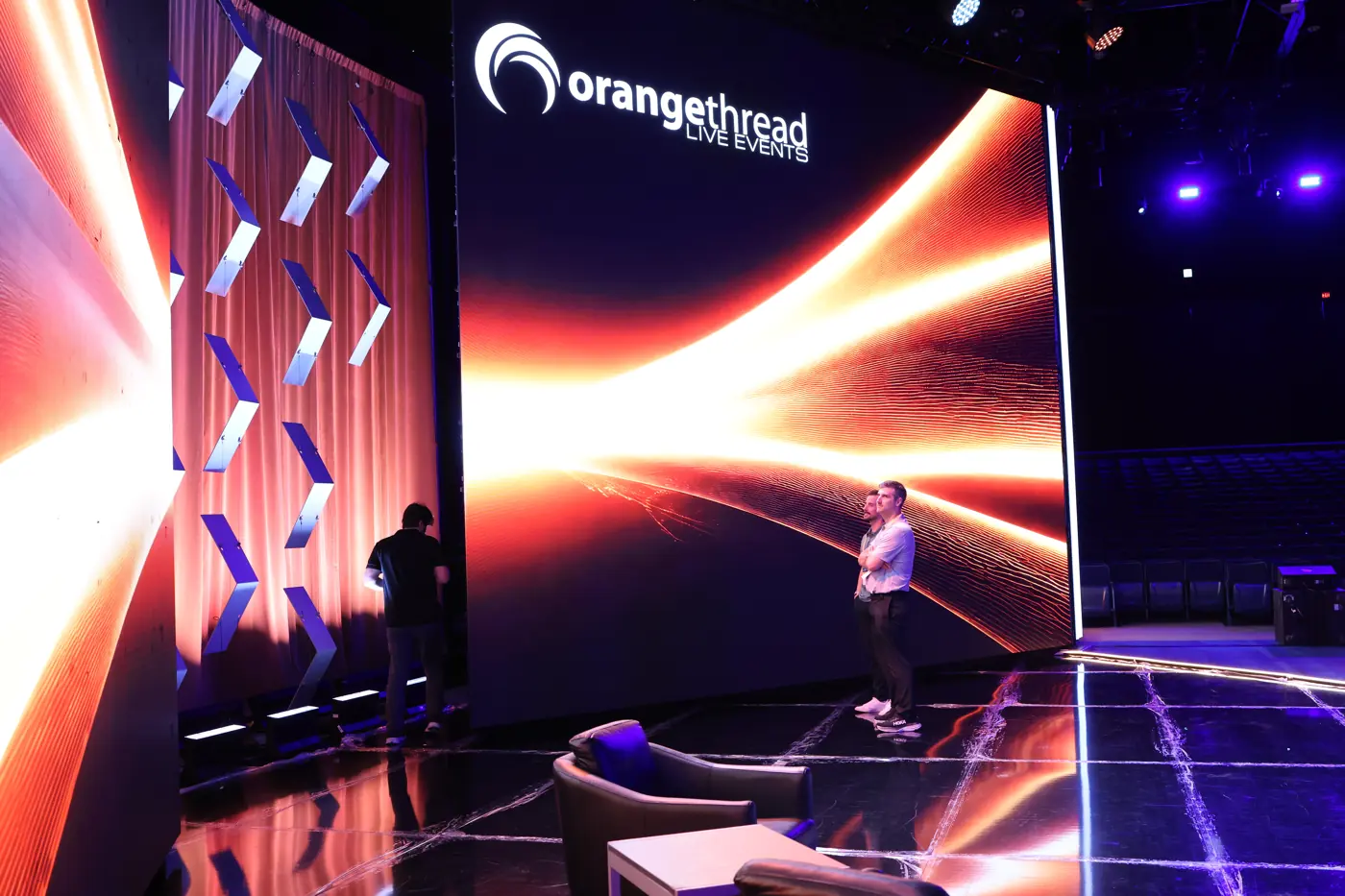

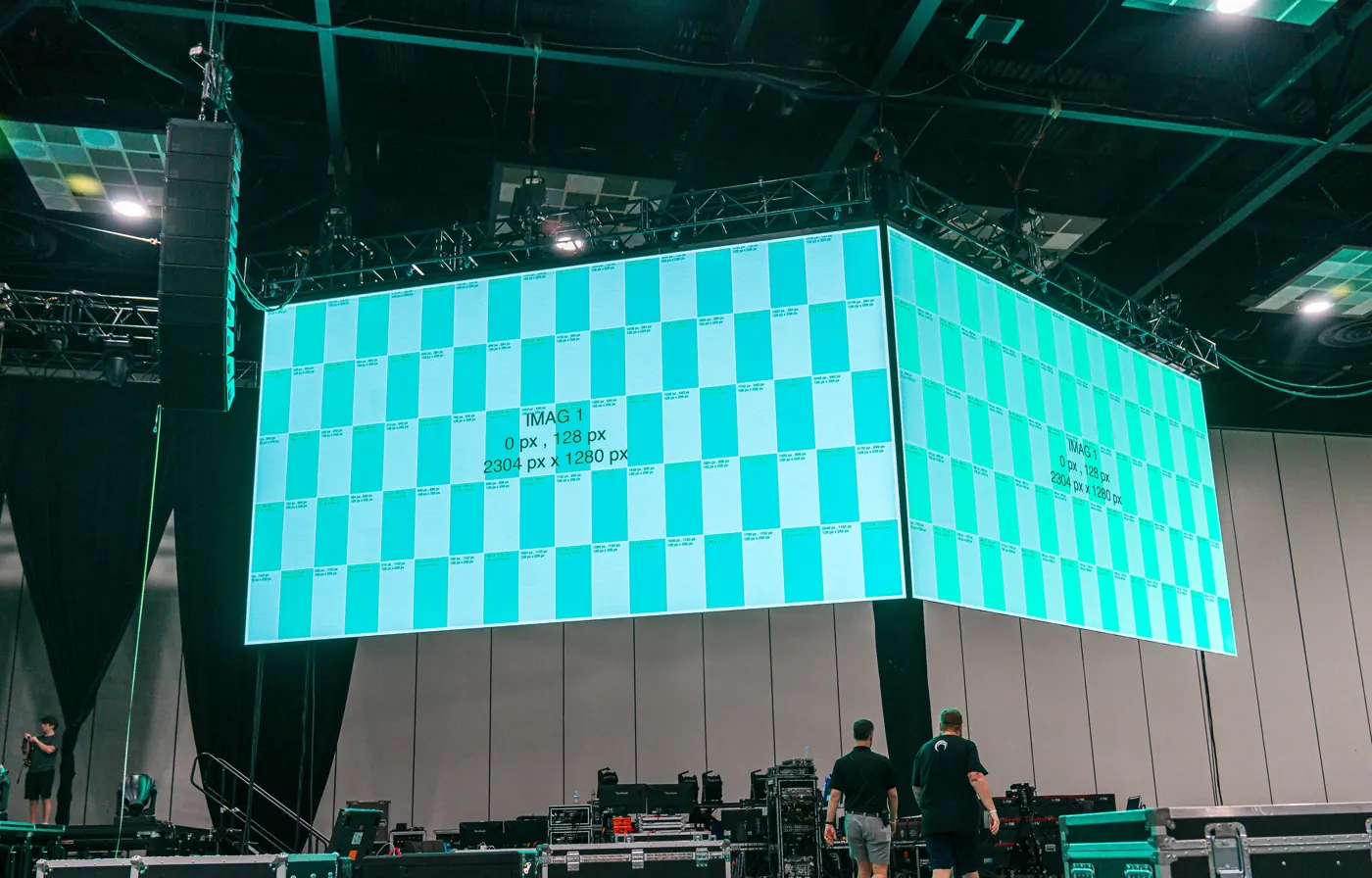

| 90-degree corners | A wall that turns into a second plane | Corner tiles keep the seam tight |

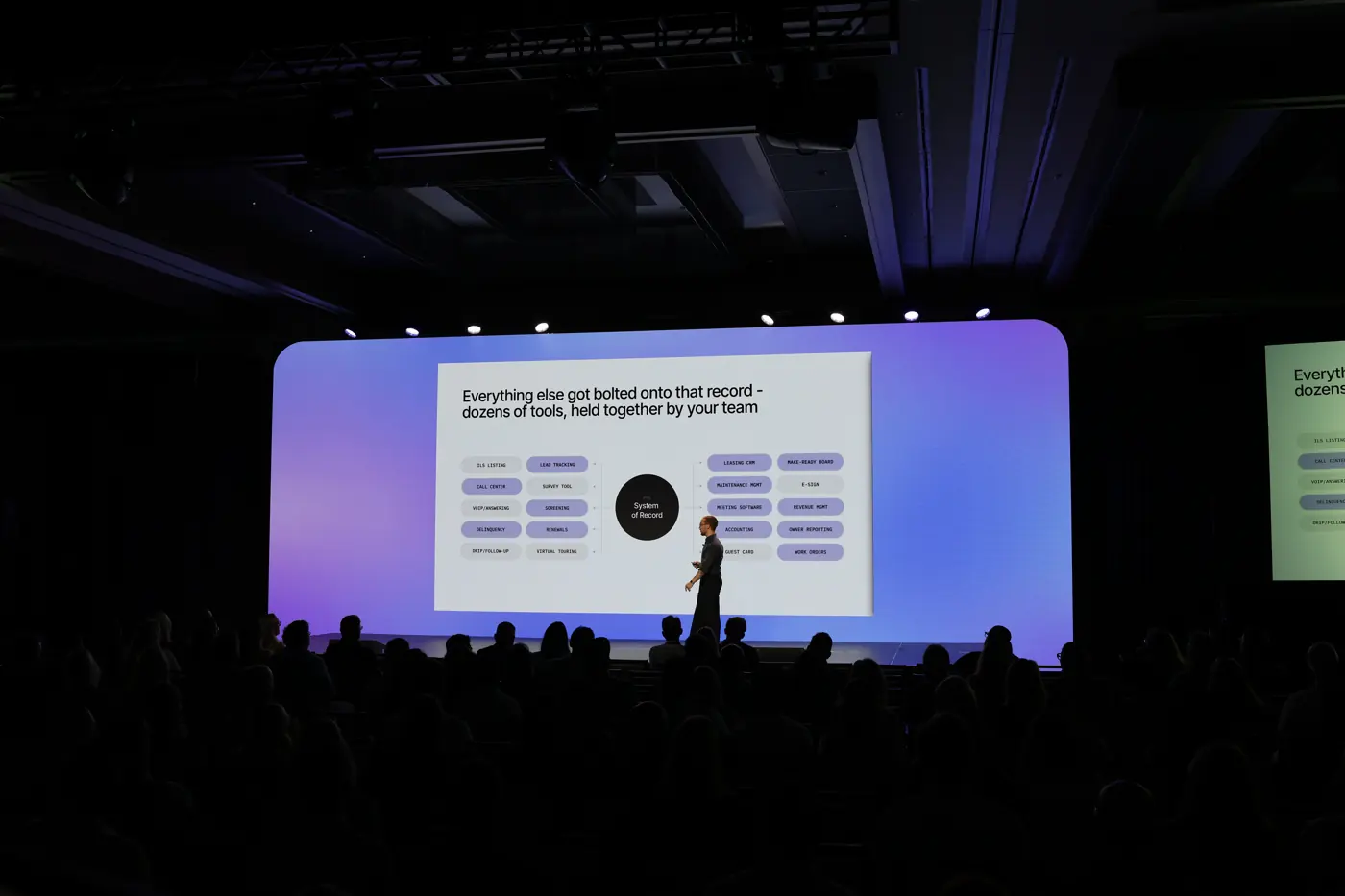

| Rounded corners | A custom shape for a branded look | Custom rounded corner masks finish the edges |

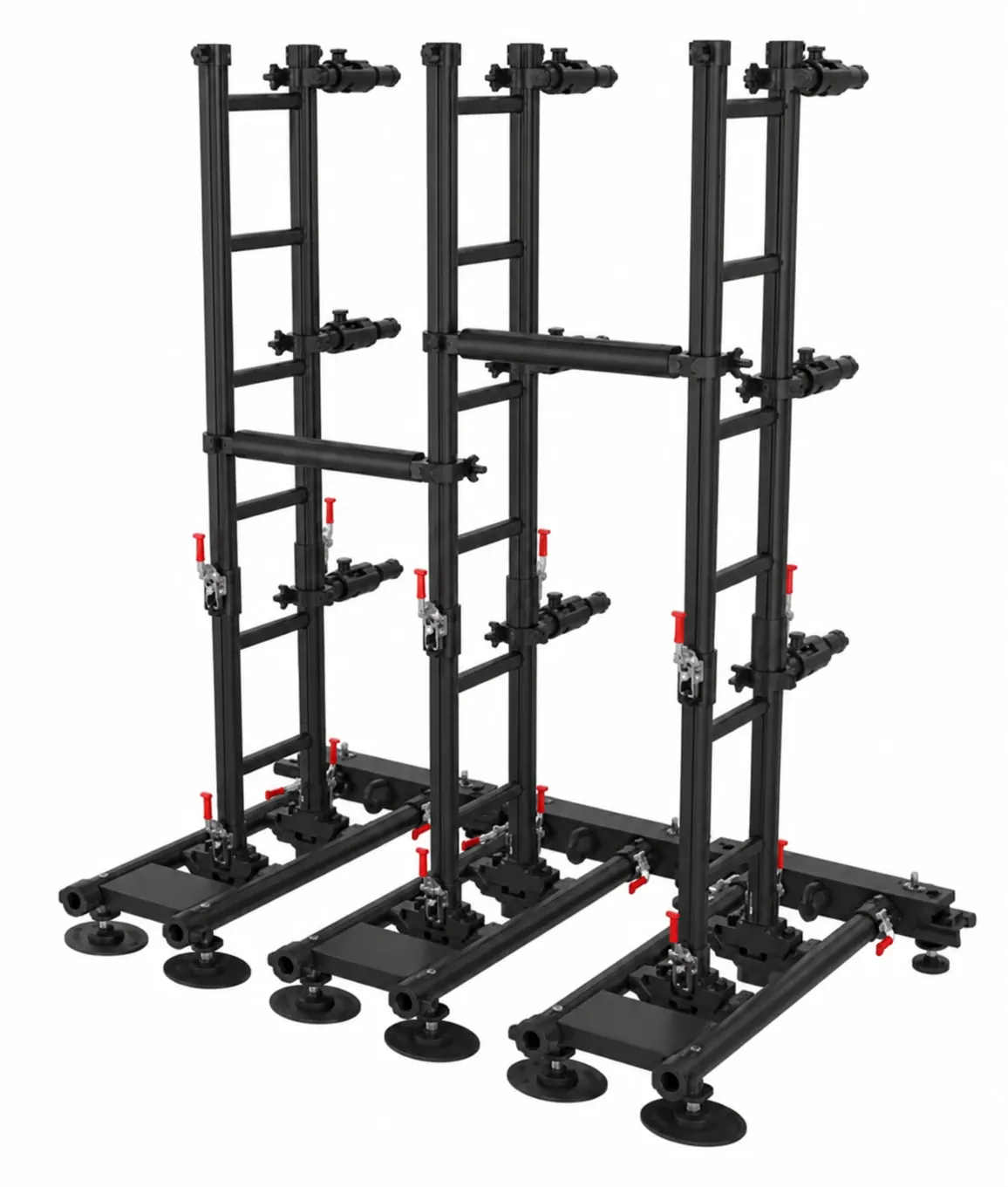

| Ground stacked | Rigging is limited or costly in the room | Often the budget-friendly build |

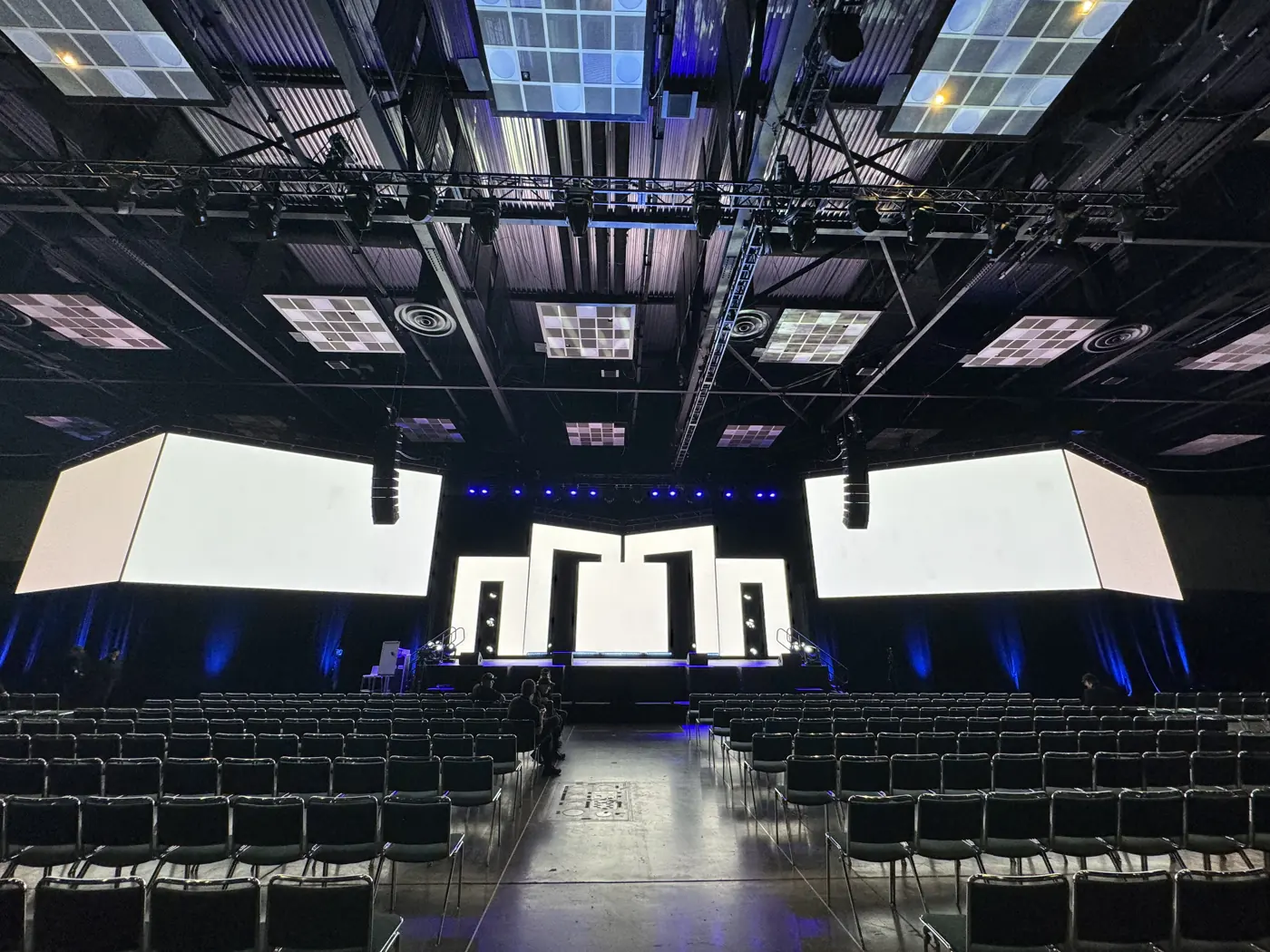

| Rigged | You need height above the stage | Rigging runs through the venue where required |

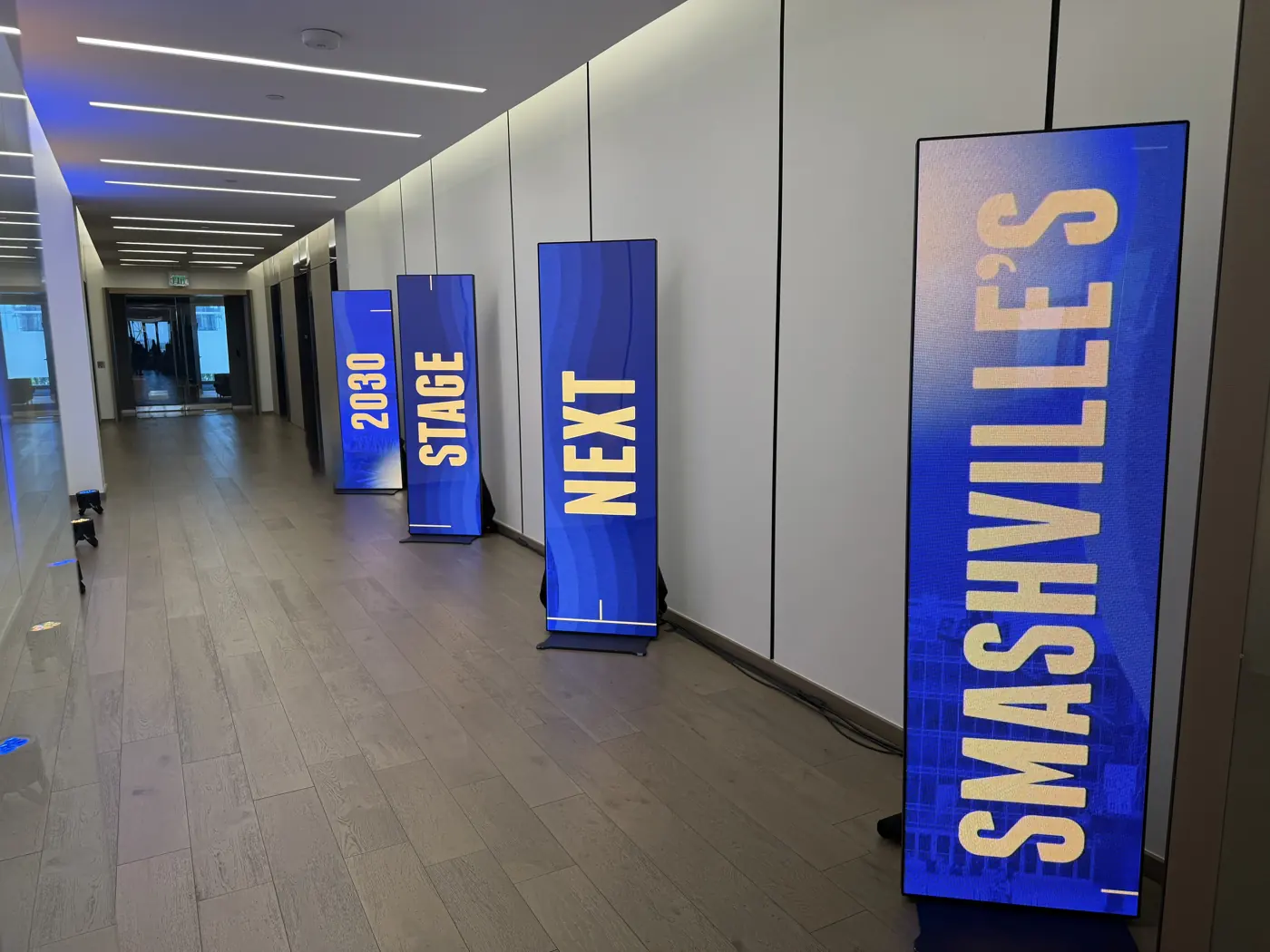

| All-in-one LED displays | Registration, sponsor areas, and lobbies | INFiLED ezPoster displays stand without a rig |

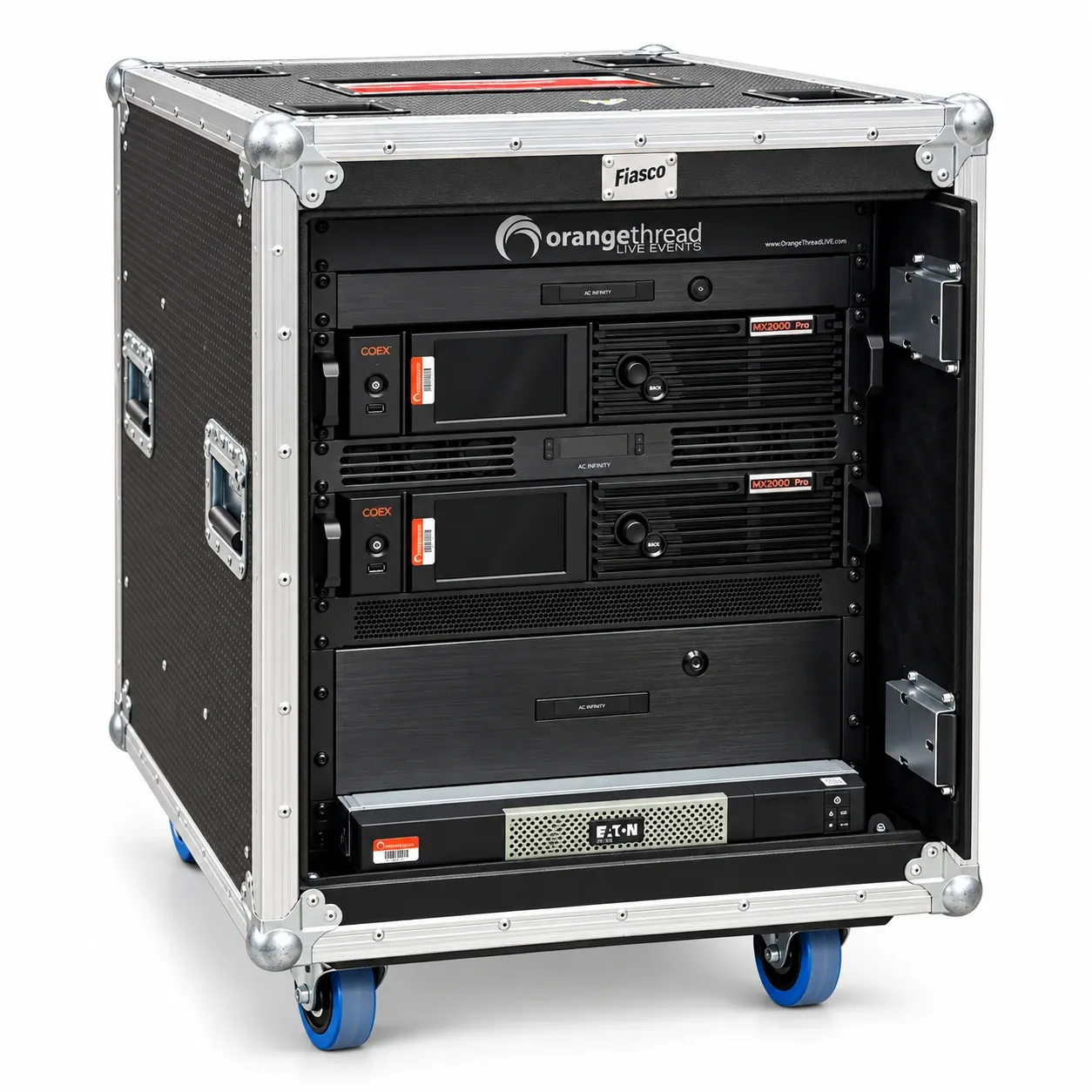

We own Absen and INFiLED LED products and use NovaStar COEX line processing. The right choice depends on your room, your ceiling, and your budget, and we recommend it plainly. Looking at registration or lobby displays? See LED displays and interactive design.

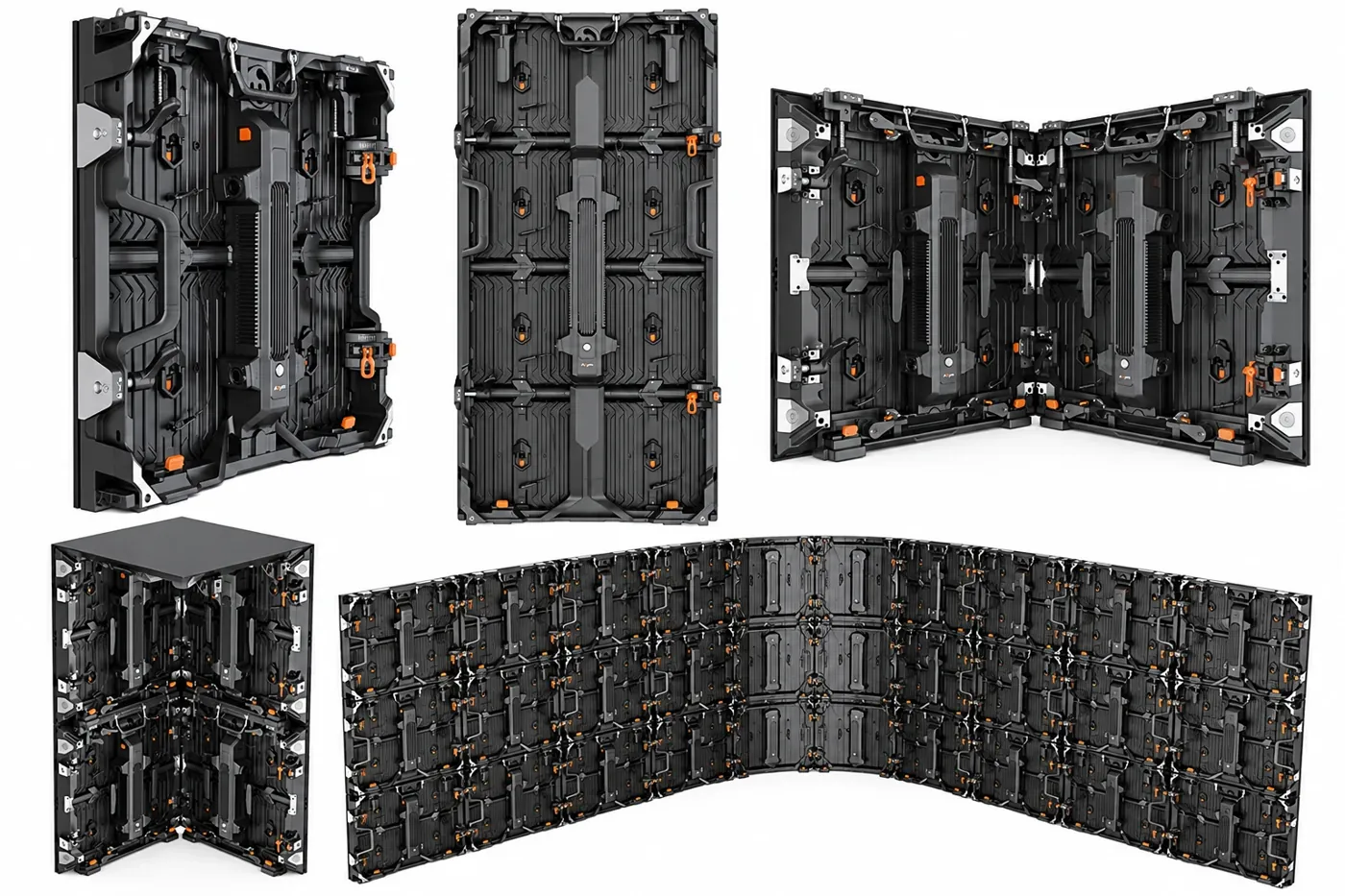

| Tile | Size | Use |
|---|---|---|
| Full tile | 500 x 1000 mm | Wall body |
| Half tile | 500 x 500 mm | Fine height and width adjustments |
| Corner tile | 500 x 500 mm | Seamless 90-degree builds |
| Wall size | In feet | Approximate pixels | Common use |
|---|---|---|---|
| 5.0 x 3.0 m | 16.4 x 9.8 ft | 1,920 x 1,152 | Breakout or small general session |
| 6.0 x 3.5 m | 19.7 x 11.5 ft | 2,304 x 1,344 | Mid-size general session |
| 8.0 x 4.5 m | 26.2 x 14.8 ft | 3,072 x 1,728 | Large general session (16:9) |
Calculated from the tile specification at 2.6mm pitch, 192 pixels per 500 mm. We confirm exact dimensions for your build.
Viewing distance. As an industry rule of thumb, the nearest seats sit about one meter (roughly 3.3 ft) from the wall for every millimeter of pixel pitch, so a 2.6mm wall looks sharp from about 8.5 feet back.
| Spec | Value |
|---|---|
| Brightness | 1,000 nits |
| Refresh rate | 7,680 Hz |
| Resolution | 192 x 384 pixels per full tile |
| Weight | About 10 kg (22 lb) per full tile |
| Viewing angle | 160 degrees horizontal, 150 degrees vertical |
| Service | Front and rear access |
| Edges | Protective corner design |
| Environment | Indoor |
| Factor | LED wall | Projection |
|---|---|---|
| Bright rooms | Holds color and contrast | Washes out in strong ambient light |
| Presenter near the screen | No shadow | Shadow risk |
| Throw distance | None | Needs space behind or above |
| Sizes and shapes | Any aspect ratio, curves, corners | Fixed to the screen |
| Cost | Higher | Often lower for small rooms |
| Setup time | Longer | Shorter |
Choose projection when the room is small and dark, the budget is tight, and you need a standard screen for breakouts. Choose LED when the room is bright, the stage is large, or the wall is part of the set. We own both and will tell you which one fits. Curious about projecting onto objects and architecture? See projection mapping.
The venue supplies every rig point, so we design walls that lean on a strong ground package.
CP Rigging is the venue’s exclusive provider, and we design inside the building’s weight ratings.
The Griffin Ballroom supports rigged and ground builds, and the Symphony Ballroom supports ground builds. We have built walls on stages in both.
★★★★★“The video and camera work were absolutely stunning. Our fans raved about the sound quality and the massive screen presence.”
Daniel ZapataShow Producer, K-LOVE Fan Awards weekend · Google review, June 2025
★★★★★“They stay on top of current trends and technology to deliver a state of the art product with a service level second to none.”
Courtney McGeePresident and CEO, Event Logistics, Inc. · Google review, December 2021
Request any change at any time. If it saves money, we credit your final invoice. If it costs more, we tell you before we bill you. Venue-billed items follow venue terms, and we flag them as early as we know them. Choose one bill and one point of contact, or pay venue items direct. Your call.
Price moves with wall size, configuration (ground stacked or rigged), number of days, content and processing needs, crew, and venue-billed items. Send us your room and dates, and you will have a detailed estimate within 72 hours in most cases.
The questions planners ask before they book, answered straight.
Price moves with wall size, configuration, days on site, content and processing needs, crew, and venue charges. Every estimate lists venue-billed items separately, and you have a detailed quote within 72 hours in most cases once we have the right information.
Our 2.6mm tiles look sharp from about 8.5 feet and beyond, which suits most general sessions, panels, and galas.
We build setup around the venue’s load-in schedule and confirm times in your plan. A flat wall is the fastest to build, and curves, corners, and rigging add time, so you see the schedule before you commit.
Yes. Creative curve tiles shape arcs, corner tiles build seamless 90-degree corners, and custom rounded corner masks finish a branded edge.
We build both. Ground stacking often keeps the price lower, and rigging adds height. Rigging runs through the venue where required, and we plan around those rules.

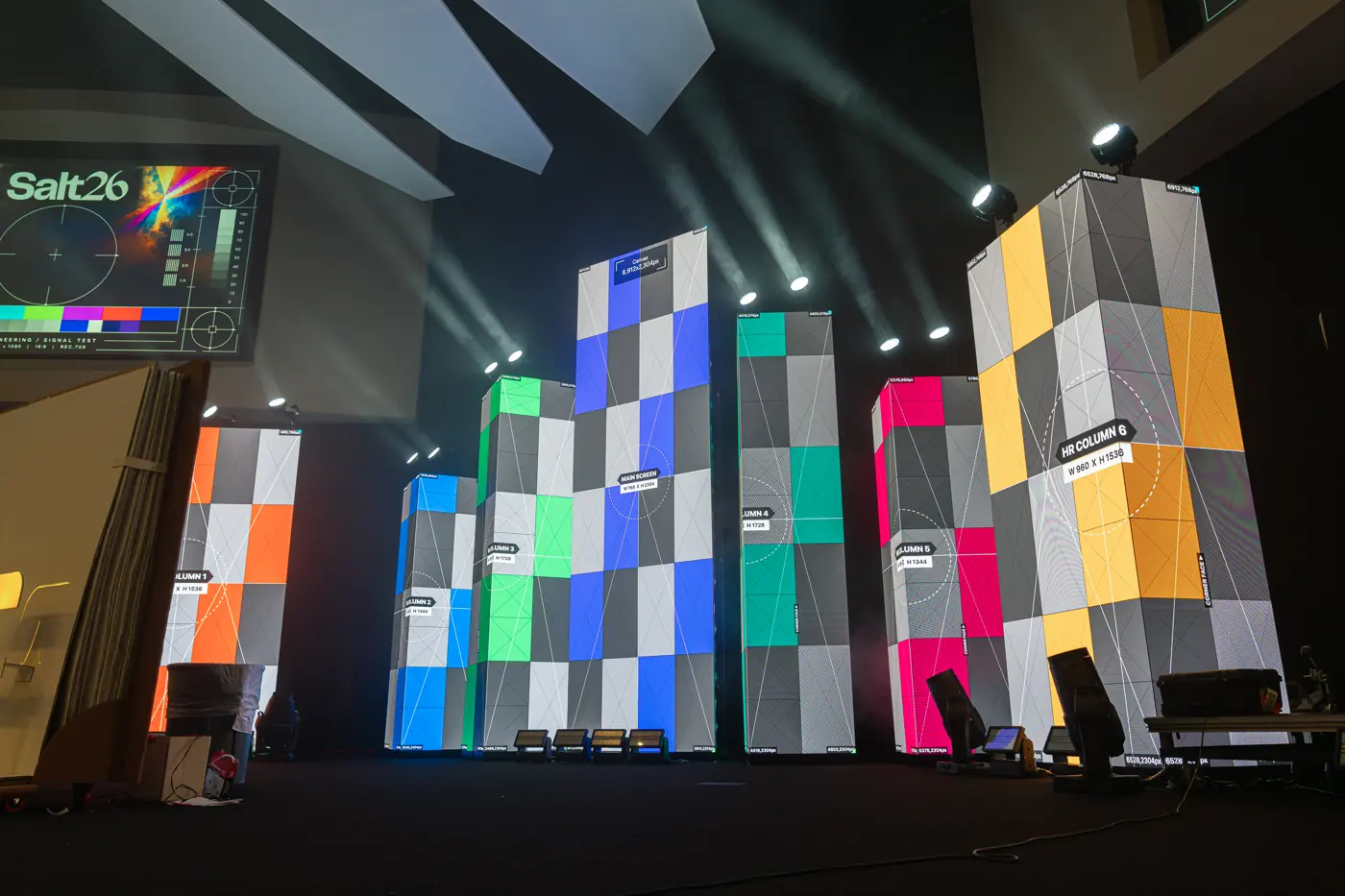

After we size the wall, we send a spec sheet with the exact pixel dimensions so your designers build to fit.
LED holds up in bright rooms and has no throw distance or shadow. Projection costs less in small, dark rooms. We recommend whichever fits your room and budget.

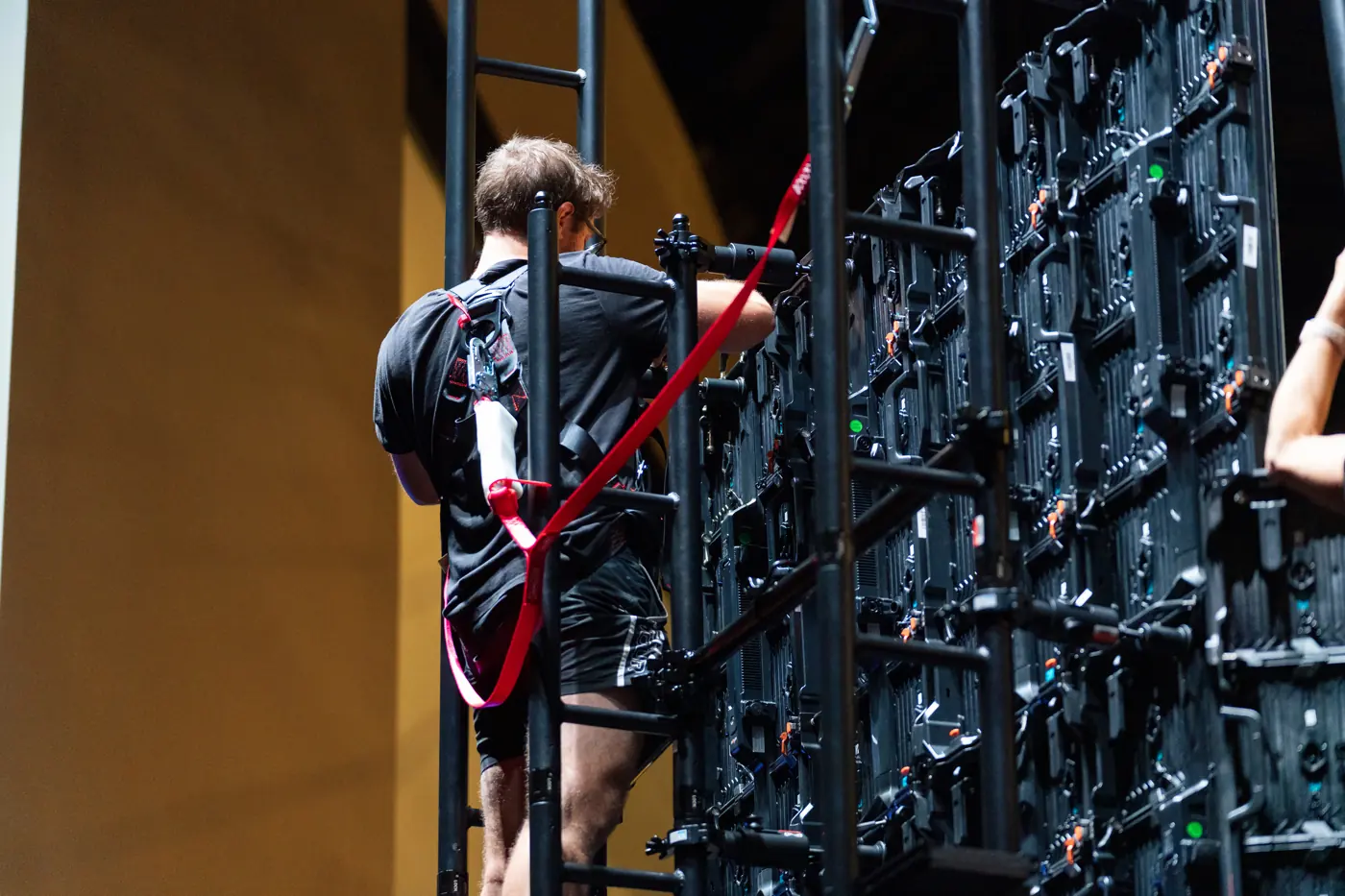

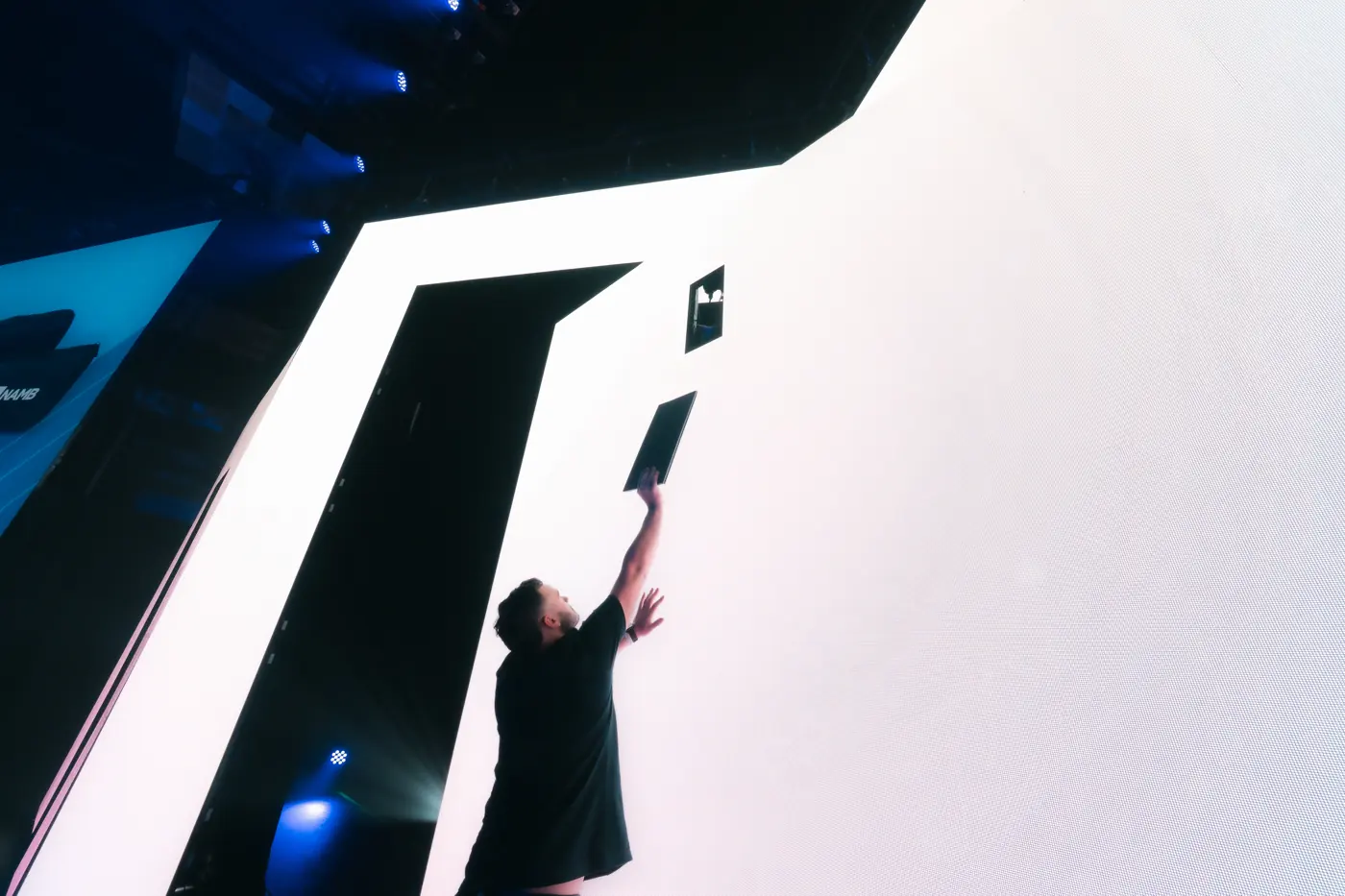

Tiles can be serviced from the front or the rear, and your production manager and LED specialist are on site to respond.
Your full-time production manager owns the show, and a trained specialist runs each role, including LED and video.
Quotes arrive within 72 hours in most cases once we have the right information. Request any change at any time, and we credit savings to your final invoice and tell you about added costs before we bill you.
Tell us about your event. You will hear from us within 72 hours of sharing the details.
